The steps from stud to hung screen

The work moves in a fixed order, and skipping ahead is how crooked screens happen.

1. Weigh and match. The installer reads the TV's weight and hole pattern and picks a bracket rated at least 1.5 times heavier.
2. Find the wood. A finder marks the studs, and one tiny hole under the future plate proves them.
3. Tape it up. Painter's tape draws the screen on the wall; a few minutes on the sofa show whether it feels right.
4. Fix the plate. Pilot holes, lag bolts and a level, snugged until the plate lies flat.
5. Hang and lock. The TV goes on the rails, the safety screws go in, and the level is checked once more with the weight on.
6. Tidy and show. Cords are dressed to the outlet and the household is shown how the tilt works.

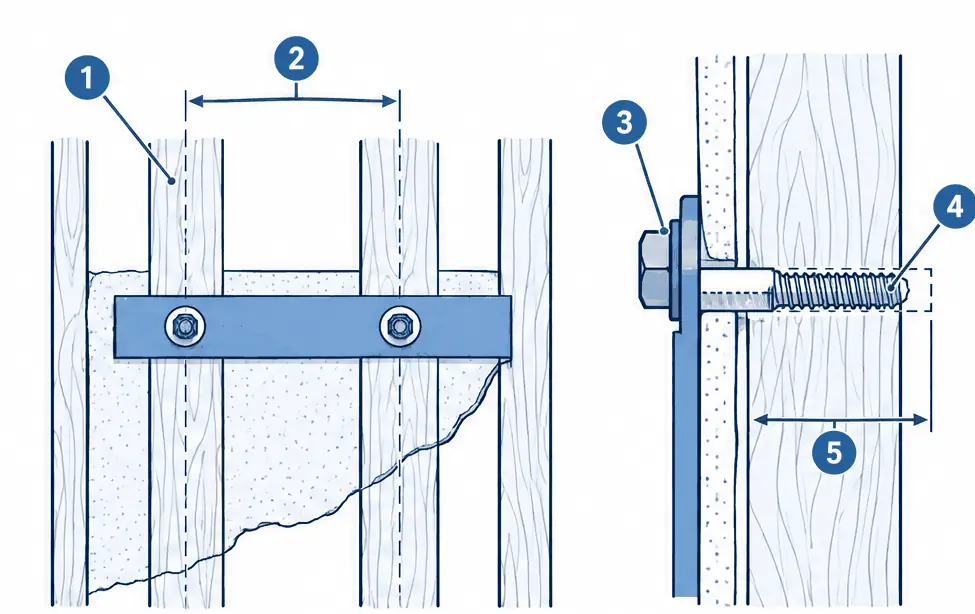

What the numbers show

1. 1Stud center line Each bolt is driven on the center line of its stud, found with a finder and a probe hole.
2. 2Stud spacing Studs sit about 16 inches apart, so a wide plate reaches two of them.
3. 3Washer and head A washer under the hex head spreads the clamping force over the plate.
4. 4Threads in solid wood The threads bite into the middle of the stud and end inside it.
5. 5Depth into the stud The bolt reaches well into the wood beyond the drywall thickness.

Where the studs run out

Houses in Yorba Linda are mostly wood-framed with studs about 16 inches apart, and the stud that falls under the middle of the screen is often not there. A wide plate bridges two studs while the screen stays centered, and a sliding adapter nudges the set sideways along the plate.

• Strap toggles open like a bar behind the drywall and share the load along a strip.
• A backer board is screwed over several studs when a big screen wants a solid face.
• Split fixing puts one side of the plate on lag bolts and the other on toggles.

Plaster in older ranch walls

Houses from the 1960s often have plaster over lath. The skin chips if it is drilled fast, and lath hides studs from many finders, so the installer uses a carbide bit at low speed with the hammer off, confirms each stud with a small test hole and fastens only into wood. Bolts are longer than for drywall because the wall is thicker.

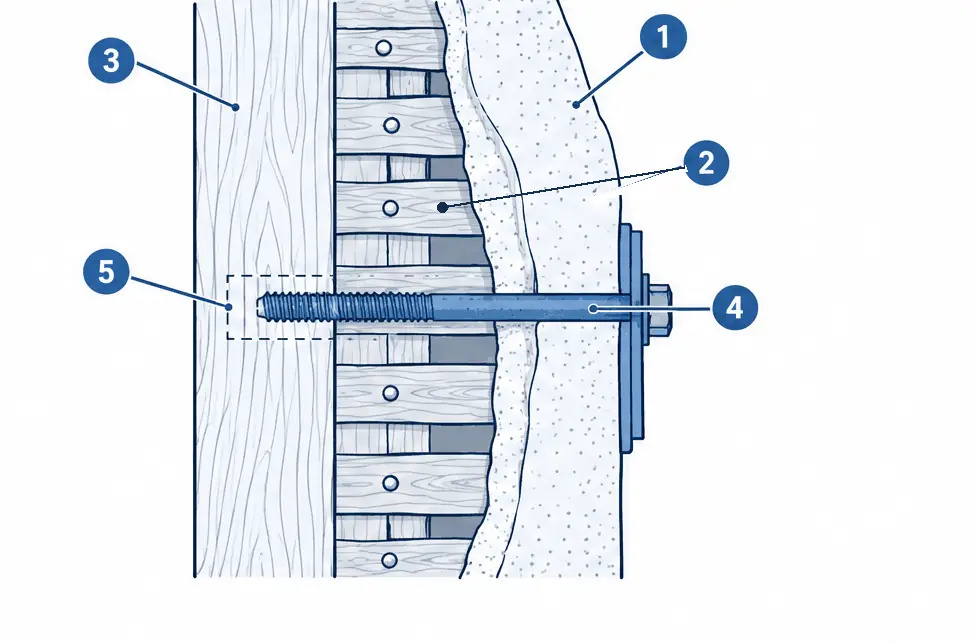

What the numbers show

1. 1Plaster coat The hard plaster layer is thick and brittle and only has to stay in place.
2. 2Lath strips Narrow wood strips nailed across the studs hold the plaster and hide the framing.
3. 3The stud behind The solid stud behind the lath is the only fixing point.
4. 4Longer lag bolt The bolt is long enough to pass through the plaster and lath and bite deep into the stud.
5. 5Pilot hole A pilot hole is drilled slowly first, so the plaster does not crack.

Setting the height from the sofa

Deep family sofas sit low, so the screen center ends up a little below what the wall suggests. The installer takes the actual seat, marks the eye line on the tape and centers the screen there; a few degrees of tilt are added only when the screen has to ride higher than that.
